X Ray Machine PLX116A1

PLX116A1 High Frequency Mobile C-arm System

Packing Detail: 2440mm×1100mm×1420mm, N.W.: 350KG, G.W.: 480KG

Machine Size (Max): Length: 240cm, Width: 81cm, Height: 221cm   G.W.: 370KG

I. Usage

Orthopedics, General Surgery, Pain management, Traumatology and so on

Surgery: Removing foreign body, implanting pace maker, partial radiography, local photography and other surgeries

II. Features

1. Integration digital acquisition and processing system, more convenient for operation

2. High-quality combined HF-HV X-ray generator, greatly reducing the X-ray irradiation.

3. Electric rotatable adjustable collimator

4. Unique hand-held remote controller, more convenient operation

5. Graphical colorfully LCD touch screen interface, convenient operation, fashionable design

6. Toshiba image intensifier is employed, stable and reliable in quality, high-definition image and display system

7. With the perspective KV, MA automatic tracking feature, the image brightness and definition are automatically set at optimal function.

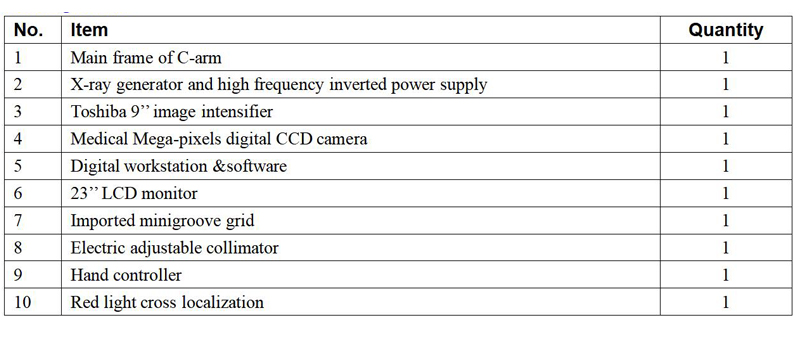

III. Configuration

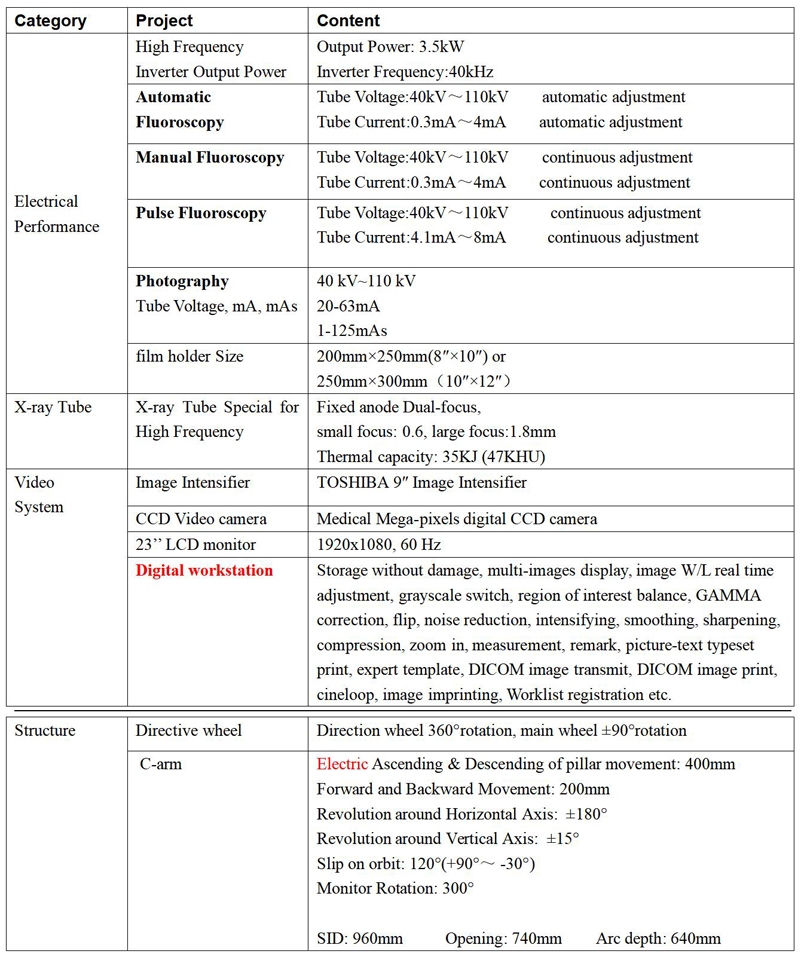

IV. System Performance and Parameter
